Saying that corporate welfare is good, two days before the beginning of the National Day holiday, a group of local tyrants carrying the United States with young children to swim. And I, looking at the balance in the bank's card, was still trying to get a chance at home. It happened to be that one of my colleagues bought a special card for Gao Fushuai, Sapphire R9 FUYR HMB TRI-X. As a Kappa jealousy (actually new and old, "wife" is more fun for others), so the dead face borrowed for a few days.
Although it has been used, it is not a place, but I can also come to a fake out of the box. The first is the classic packaging of ultra-platinum robots. The positive features are prominently highlighted by VR ready. Of course, there are also DX12 native support, AMD LiquidVRTM technology, and more.
Inside it is bubble wrap, watching more high-end.
The family portrait comes with an HDMI cable. Driver CDs and manuals are nothing to use.
Positive one, three fans cooling, after all, HBM memory heat is not covered.
The front also added a bit of texture processing, which looks a lot taller.

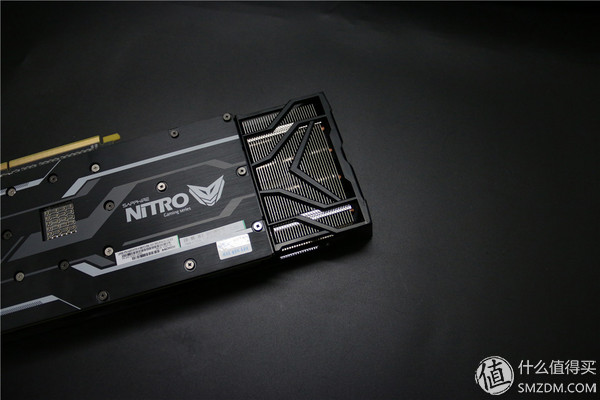

Two backplanes, you can see that the PCB board is not long, the long is the cooling system.
Auxiliary power supply interface, 8+8PIN is not covered, can supply 300W.
Compared to the previous non-public fury, an additional DVI-I interface, this is quite humane, after all, my monitor is DVI interface.
Heat dissipation is enough, the whole card weighs 1209g.
Start dismantling. The screws really have enough, the heart of the demolition.
Metal backboard close-up.
The power supply is 7+1 phase power supply, using sapphire's own black diamond inductor, which is essential for high-end sapphire graphics cards.
This card is very heavy, but fortunately in the cooling system to install a black metal frame, played a role in the fixed graphics, plus so many fixed screws, it is estimated that the PCB board do not worry about being bent by it.
There is also heat dissipation glue on the power supply, so that the heat dissipation system can help heat the power module.
Five heat pipes, the specific diameter is difficult to measure, but the anti-oxidation treatment, each heat pipe is bright and bright, with GE excellent.
The core of Fiji pro, HBM memory and GPU together.
Test platform, 6700K plus 16G memory.
In the baking machine test, when the side plate of the chassis was opened, the baking temperature was 75°C, and the baking power consumption was 321W.
Benchmarks run sub-test, FSE mode 7332 points, FSU mode 3717 points.
The STEAM VR benchmark scored 9.3 points, none of which was below 90 frames.
In fact, this card media has also been reviewed, but only tested 4 games, of course, I need more.
All tests are based on 1080P resolution.
The first is the starting point, the highest special effects DX11 43.2 frames, DX12 50 frames.
Tomb Raider 10 has the highest effects, DX11 70.8 frames, and DX12 84.98 frames.
Killer 6 ULTRA special effects, DX11 104.37 frames, 128.89 frames.
Warhammer: Total War DX11 73.7 frames, DX12 95 frames.
Rainbow 6: The siege of the highest special effects ran out 122.7 points.
Defeated: Humans split 51.8 frames of DX11 frames and 54.9 frames of DX12 frames.
The Witcher 3 is particularly effective, with a minimum of 37 frames and an average of 48 frames.
Right defense 3 highest effects. The minimum number of frames is 75 frames and the average number of frames is 91.017 frames.
Call of Duty 12 high effects, the lowest special effects 75 frames, the average number of frames 91.583 frames.
Finally, using the mathematics taught by the physical education teacher, this card consumes 100W more power than the 480-220W baking machine on the entire platform. It is fully loaded with more than 10 hours of electricity every day, and the civilian electricity is once 6-8, more than 21.4 pieces per month. The game will not be fully loaded for a long time, so it should be a little less, so to say that a month is relatively high compared to the new Polaris, although the power consumption is higher, but I can accept, not to mention I can only play for 7 days.
Summarize the advantages and disadvantages:
Advantages: 1: cost is relatively large, to know that before the HBM graphics card on the 4K, and now it is only 2699
2: The heat is good, the overall weight is very heavy.
Disadvantages: 1: Relative to the current Polaris, power consumption is a relatively obvious drawback, after all, or 28NM process
2: There is no logo light and the appearance is slightly deducted
