The previous out-of-the-box mention mentioned that my 7100 has been with me for 6 years until it was officially retired in April this year. Of course, it is impossible to be completely not bad in the process. The so-called new three-year old three-year supplements for three years, in fact, this cargo can still be used, but think about it, can not be too shy (Nima, pay for the first meal to pay, his own mouse to feel distressed, this is disease!). Before sharing here again because of long-term use (yes, I used this product dota for 3 years and 3 years), the right button is completely soft. During the several times, the results were good.
Not much nonsense (better!), we started
In the bottom, this is only the old 7100. It doesn't really feel like touching anything. The positioning of the new time is still accurate. The popular Blu-ray engine in those years is said to be able to be used on any surface. It will be better if it starts for 3 months. Pick a mouse pad, bought no less than 10 pieces, this one can use. . . Or directly on the desktop, but after graduating from home, there are lacquer on the table and there is a variety of tragedies.
The USB receiver has a slot directly underneath, so when you open the mouse you can see it and continue
The mouse was dissected open, do not Tucao inside the dirty goods, after all, spent 6 years, I really do not love not clean ah!
The position of the dice is a micro-motion, and it has already been spent, the reason is that the left button was originally on the right, of course, not for the micro-moving, we say not welding!
Another big one
The side can see that the white one on the fretting has been pressed out of the groove
Originally I thought this groove was the reason for the softness of the hand. The use of a paper towel foam +502 way to fill the pit, the results are not obvious.
So then I directly swapped the left and right keyshells and white.
Miserable. . .
Friction shell snap. Open here
This is the true face of micro-motion, in fact, electricity professional or related professional partners may be very familiar with this.
This position corresponds to the position of the white point. Pressing this position equals the micro movement.
We also look at the side
Is the position on the right side different? It is the location of the red circle in the picture below. Compare the two figures above. This is the key to turn on the switch, is not a very simple mechanical structure?
The following is simple, we see that as long as we use the dice, the position of the yellow circle, press a little bit, can let the pressure feedback side, do not get too
Flat, otherwise a dota down you cry. Conversely, if you squeeze the goods, making her more rounded (Nima ghosts) can make the feedback softer.

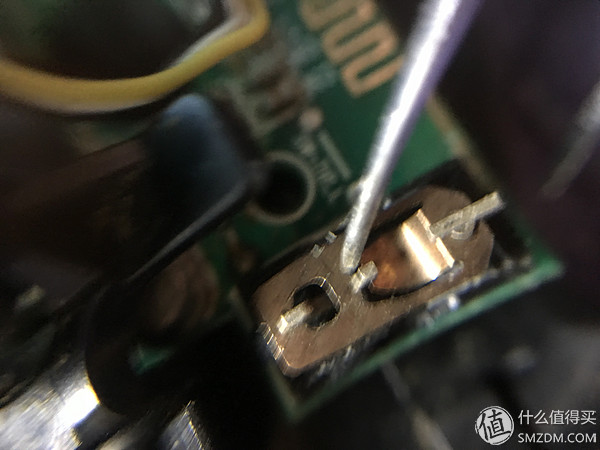

In addition, the position of the copper piece indicated by this box is a fixed copper clip. To push it to the left is to remove the copper piece. If you remove it, it is easier to adjust the previously mentioned arc, but the installation is quite tiring. That's right, so I've used tweezers not to unload it directly.
The above is the process of adjusting the feedback. As for the combo, if the combo is also due to the soft feedback, resulting in multiple contact mistakes, I believe this method can also improve the combo problem. If you are interested, you can try it yourself. This should be less difficult and the risk is not too great.
Oh! Here's another egg time:
Careful partners may have discovered that the mouse was opened without removing the screw.
That's right, there is no screw on this product. It should be said that the screw foot is already broken.
There are two screws on the end of the mouse, but because it is long, it is broken, and the screw has no way to fix it.
With 502 ? No, no, it is too violent. It will be very troublesome to remove it later!
So, how do you fix this mouse? Then you need to invite a big god— Chinese god oil! ! ! ! ! !
Take a look at this stalwart figure!
Applying Fengyou to the combined surface of the mouse's tail
It's like this. It should be able to see something.
Then wait slowly, wait, wait. Of course, you can use it, but you can press it tighter.
After the dry effect
It will not fall off at all, but it will open with a nail.
The principle is actually very simple, plastics and other organic solvents are easy, and when we dipped in paint, we often use oil to wash the same thing. Wind balm can also be a good place to remove some of the stickers to remove the residual material, remove some of the text on the Memorial Cup.
In addition, we recommend that you try white oil:
I like to use some white oil anyway, the effect is better than the wind oil, of course, I refer to its original function rather than the attached skill of the adhesive
When buying white oil, try to choose "Hexing" brand. Others do not do it well.
In addition, there is still a tool that has not yet appeared on the scene, or the careful partner should discover there are a few photographs, the thing is so small but the photograph is very clear. In fact, the equipment used for shooting was a mobile phone, but I used a few lenses.
Facts have proved that this a few dollars is still a bit effective, and the macro effect is not bad.
Macro shot directly, this is the case
Finally make a shadow
This is what it looks like after the egg is revealed.
Come here, thank you all. If you like it, please also try to make some money.
In addition, if you like the pattern of eggs, I try to share more tips in life.
